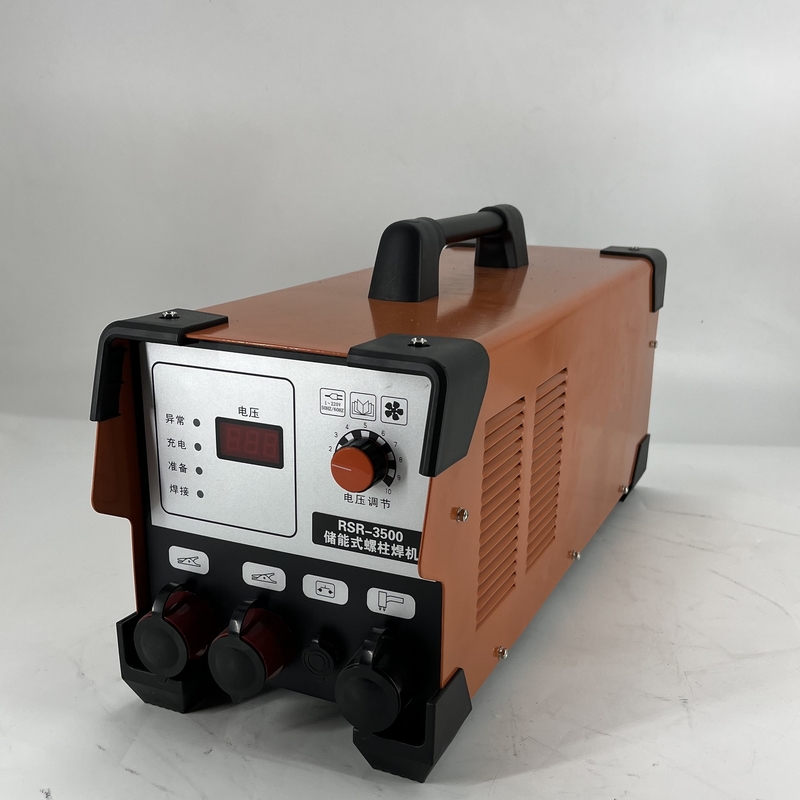

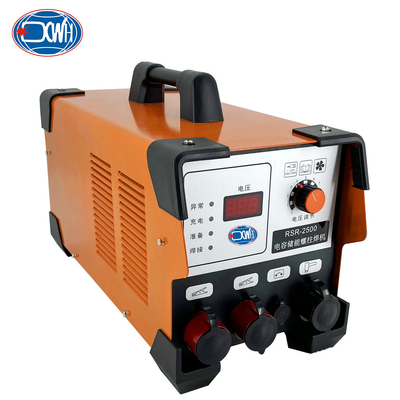

Bolt Capacitor Discharge Harbor Freight Shear Stud Welding Machine For Sale
Product Description
Capacitive energy storage stud welding machine is a welding process that uses the principle of capacitive discharge to weld the stud on the workpiece. The discharge time is only 3-6 milliseconds, so that the stud can be welded on a 0.5-3 mm thin plate without causing deformation, discoloration or burning through.
Technical Parameters
| Item/Model |
RSR-1600
|
RSR-2500
|
RSR-3000
|
| Input Voltage (V) |
AC220
|
AC220
|
AC220
|
| Frequency (Hz) |
50/60
|
50/60
|
50/60
|
| Rated storage energy (J) | 1600 | 2500 | 3000 |
| Diameter of welding stud (mm) |
M3~M6
|
M3~M8
|
M3~M10
|
| Thickness of welding plate (mm) |
0.2~1.0
|
0.2~2.0
|
0.2~3.0
|
| Capacitance (uf) | 720000 | 1080000 | 1440000 |
| Productivity (pcs/minute) | 20 | 20 | 20 |
| Charging voltage (V) |
30~200
|
30~200
|
30~200
|
| Overall dimension (mm) |
416*245*300
|
416*245*300
|
416*245*300
|
| Weight (kg) | 12 | 13 | 14 |
| Protection Degree | IP21S | IP21S | IP21S |
Features
1. Continuously display the energy storage voltage, which is not affected by the fluctuation of input voltage, and can automatically adapt to the changes of power grid, with over temperature self-protection function
2. The panel is LCD, microprocessor controlled, and has expert welding specifications
3. Small size, light weight and convenient operation
4. The welding is firm, with less splash and beautiful welding
5. Suitable for stud welding of carbon steel, stainless steel, copper and aluminum.
Panel diagram
Safety Warning
radiation may damage your eyes and burn your skin!
- Use appropriate welding masks and filters, and wear protective clothing to protect your eyes and body.
- Use suitable masks or curtains to protect bystanders from injury.
Fire
- When welding, please make sure there is no flammable near the welding staton as the welding sparks may cause fire.
