| Brand Name: | XWH |
| Model Number: | DTN-500J, DTN-800J |
| MOQ: | 1 |
| Price: | USD3000-USD4500 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |

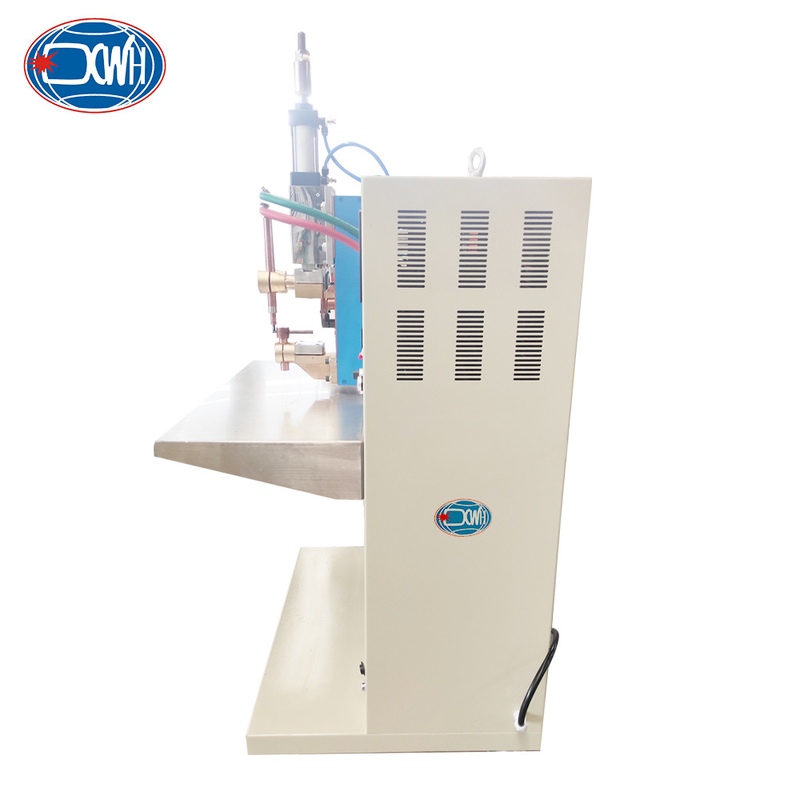

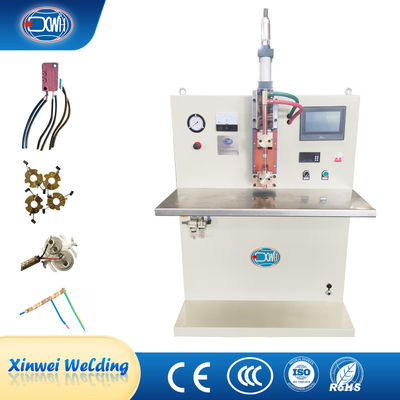

Electronic Components Resistance Capacitor Discharge Spot Welder Welding Machine
Product Introduction:
Capacitive energy storage welding machine is a special resistance welding machine that uses a pulse current with relatively concentrated energy to generate heat through the contact point of the welded work and fuse the metal. Mainly used for welding dissimilar metal hard specifications with different thicknesses or surfaces, especially suitable for welding materials with good thermal conductivity, good conductivity, or small post weld heat affected zone, such as electrical appliances, watch straps, jewelry, stainless steel tableware, and hardware manufacturing.
Advantages:
1. No need for current limiting resistors, reducing heat sources.
2. No blackening of solder joints, eliminating the need for polishing process.
3. Internal power stabilizer device ensures constant output voltage and good welding consistency.
4. Fully digital control with good accuracy.
5. Worldrenowned original components guarantee quality confidence.
6. The design and operation of this machine are simple, eliminating complex tuning and teaching procedures, and the welding effect is perfect.
7. Main welding materials: stainless steel, brass, alloy copper, aluminum alloy, etc.
8. Especially suitable for manufacturers of electrical watch straps, jewelry, stainless steel tableware, and various hardware products.
Technical Parameters:
| Model | Input voltage | Capacitance | Energy Storage | Electrode Pressure | The Max. welding Ihickness | Weigh |
| DTN-500J | 220V | 4500μF | 500j | 1000N | 1+1MM | 200KG |
| DTN-800J | 220V | 8000μF | 800j | 3900N | 1.2+1.2MM | 450KG |
Details:
Easy to operate
Capacitive discharge welding, short time solder joints, small deformation, easy to operate.
High welding quality
Fully functional, good performance, stable voltage, good qualitative analysis and high welding quality.
Different electrodes
Scene Images:
Application:
FAQ:
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
