| Brand Name: | XWH |
| Model Number: | DTN-500J, DTN-800J |
| MOQ: | 1 |
| Price: | USD3000-USD4500 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |

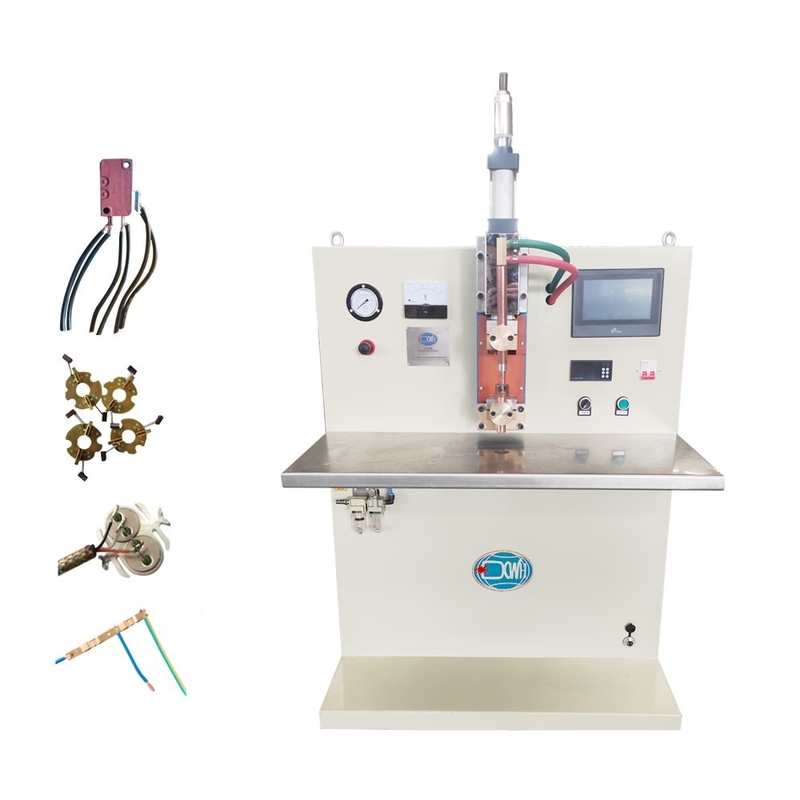

Resistance Electronic Components Capacitive Discharge Spot Welder Welding Machine
Product Introduction:
Capacitive energy storage welding machine is a special resistance welding machine that uses a pulse current with relatively concentrated energy to generate heat through the contact point of the welded work and fuse the metal. Mainly used for welding dissimilar metal hard specifications with different thicknesses or surfaces, especially suitable for welding materials with good thermal conductivity, good conductivity, or small post weld heat affected zone, such as electrical appliances, watch straps, jewelry, stainless steel tableware, and hardware manufacturing.
Advantages:
1. Double overvoltage protection can protect the capacitor by keeping the voltage at both ends of the capacitor from exceeding its safe voltage.
2. The output is isolated from the power grid, the welding specifications are not affected by grid voltage fluctuations, and the power factor is high, energy-saving and energy-saving.
3. Combined with different electrodes, it can be used for welding various metals such as steel, aluminum, silver, stainless steel, nickel, etc., as well as wires and plates.
4. Set the safe discharge time to 0.1 seconds.
5. LCD counter.
6. Simple and easy to operate digital control panel.
7. Working voltage: single-phase 220V± 10%.
Technical Parameters:
| Model | Input voltage | Capacitance | Energy Storage | Electrode Pressure | The Max. welding Ihickness | Weigh |
| DTN-500J | 220V | 4500μF | 500j | 1000N | 1+1MM | 200KG |
| DTN-800J | 220V | 8000μF | 800j | 3900N | 1.2+1.2MM | 450KG |
Details:
Easy to operate
Capacitive discharge welding, short time solder joints, small deformation, easy to operate.
High welding quality
Fully functional, good performance, stable voltage, good qualitative analysis and high welding quality.
Different electrodes

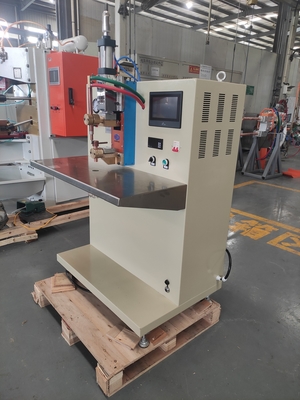

Scene Images:
Application:
FAQ:
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
