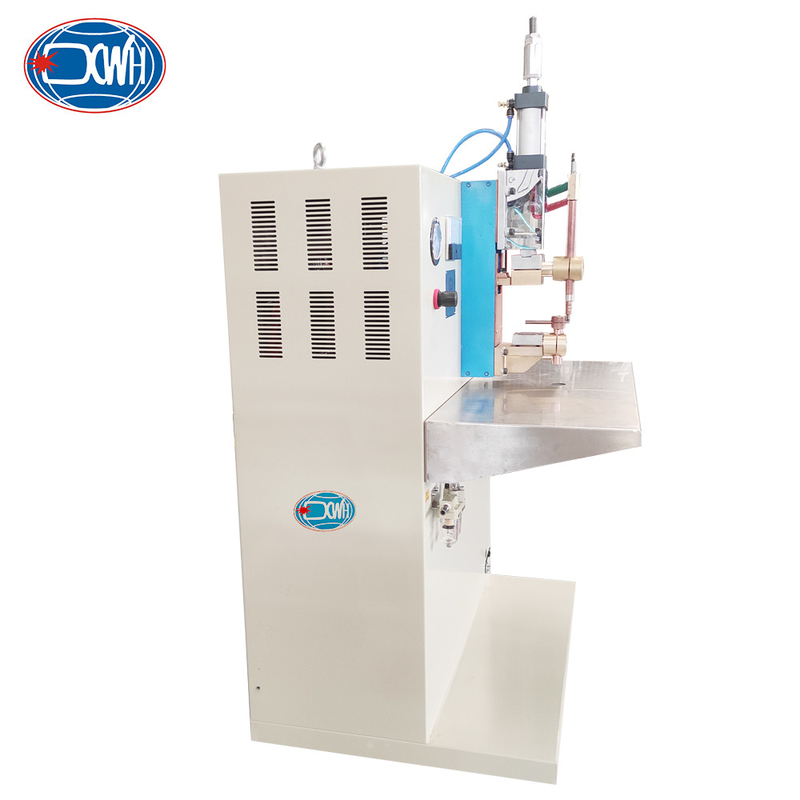

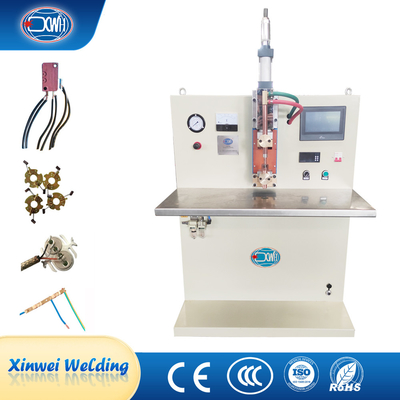

500J Cnc Spot Welder Energy Storage Capacitor Discharge Projection Welding Machine
Product Introduction:
Capacitive energy storage welding machine is a special resistance welding machine that uses a pulse current with relatively concentrated energy to generate heat through the contact point of the welded work and fuse the metal. Mainly used for welding dissimilar metal hard specifications with different thicknesses or surfaces, especially suitable for welding materials with good thermal conductivity, good conductivity, or small post weld heat affected zone, such as electrical appliances, watch straps, jewelry, stainless steel tableware, and hardware manufacturing.
Advantages:
1. Welding energy releases quickly and discharges instantly, especially suitable for welding various easily conductive metal materials, such as aluminum, copper, etc.
2. The welding heat energy is concentrated, the affected area is small, and the welding effect is beautiful. It is mainly suitable for welding various stainless steel kitchenware, tableware, etc.
3. Adopting imported capacitors, it can be repeatedly charged and discharged for a long time, with low energy loss and energy savings of over 90%. It is widely used in various spot welding in industry, especially in various multi spot welding. Welding of automotive filters, clutches, etc.
Technical Parameters:
| Model | Input voltage | Capacitance | Energy Storage | Electrode Pressure | The Max. welding Ihickness | Weigh |
| DTN-500J | 220V | 4500μF | 500j | 1000N | 1+1MM | 200KG |
| DTN-800J | 220V | 8000μF | 800j | 3900N | 1.2+1.2MM | 450KG |
Details:
Easy to operate
Capacitive discharge welding, short time solder joints, small deformation, easy to operate.
High welding quality
Fully functional, good performance, stable voltage, good qualitative analysis and high welding quality.
Different electrodes
Scene Images:
Application:
FAQ:
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
