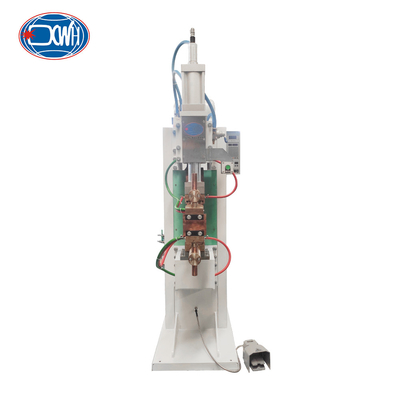

Small Stainless Rebar Cage Welded Wire Shelf Mesh Spot Welder Row Welding Machine
Product Introduction:
The long arm spot welding machine is our DTN series fixed point projection spot welding machine, customized with a long welding arm for welding special workpiece. The spot welder is a dual purpose welding machine produced by our company, mainly used for welding low-carbon steel, stainless steel, and some non-ferrous metals. It can also achieve welding between plates, between plates and projection welding nuts and bolts.
The Application:
1. Metal mesh welding: suitable for welding various metal meshes, such as steel mesh, stainless steel circular mesh, etc.
2. Hardware accessory manufacturing: widely used in the processing and manufacturing of various forms of products in the hardware accessory manufacturing industry, such as household appliances, daily hardware, transportation, electrical appliances, electronics, batteries, instruments, meters, etc.
3. Batch production: Due to the square electrode shape of the welding electrode and the flat contact between the upper and lower electrodes, multiple points or rows can be welded at once, making it suitable for mass production.
In summary, single head welding machines have become an ideal choice for metal mesh welding and hardware accessory manufacturing due to their convenient and precise pressure adjustment, high welding efficiency, and wide range of applications.
Technical Parameters:
| Item/Model | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 | |
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
|
Max.Welding Capaciry A3 steel |
MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 |
6+6 |
General Structures:
Detailed Images:
Standard Type: Mainly used for welding low-carbon steel, stainless steel, and some non-ferrous metals. It can also achieve welding between plates, between plates and projection welding nuts and bolts.

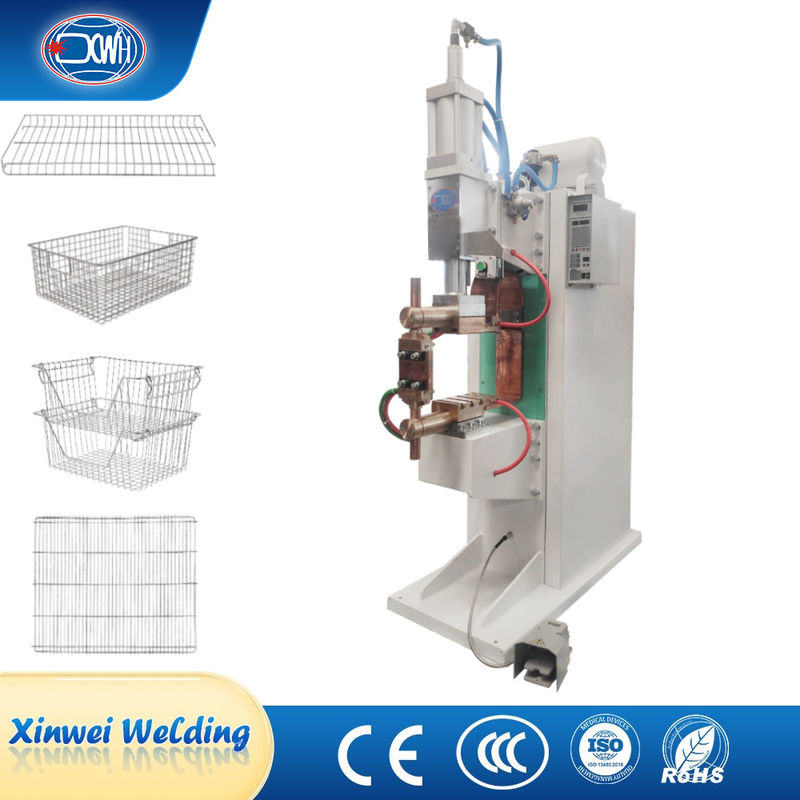

Customized Type: Customized with flat electrode, a wider and longer contact surface, suitable for welding wire meshes, cages and steel bars.
Production Line:
Workpiece:
FAQ:
