100Kva Aluminum Spot Welder Projection Resistance Long Arm Spot Welding Machine
Product Introduction:

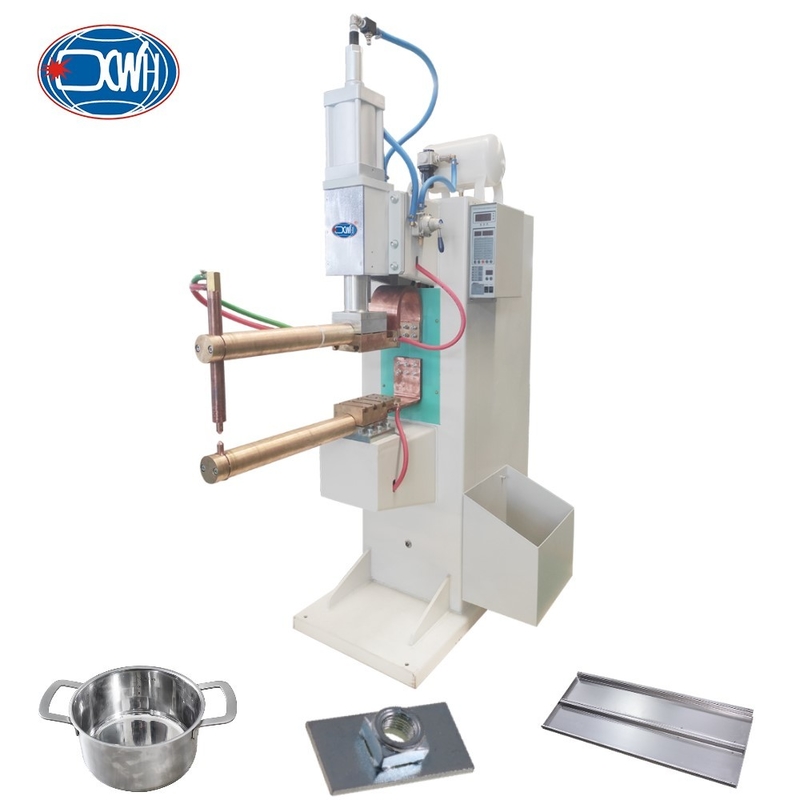

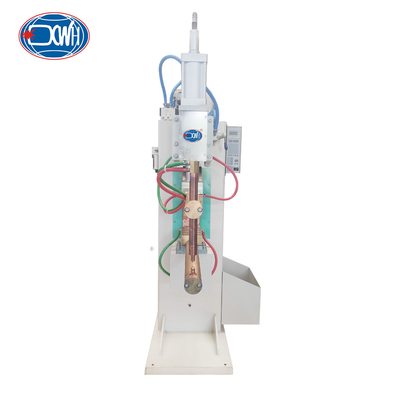

The long arm spot welding machine is our DTN series fixed point projection spot welding machine, customized with a long welding arm for welding special workpiece. The spot welder is a dual purpose welding machine produced by our company, mainly used for welding low-carbon steel, stainless steel, and some non-ferrous metals. It can also achieve welding between plates, between plates and projection welding nuts and bolts.
Features:
1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.
2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.
3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.
4. Widely applicable to automobile manufacturing, production of house applications,hardware fittings and so on.
5. Widely used in aerospace, automobile and automobile parts manufacturing,new energy and power battery and other special areas of high quality welding requirements.
Technical Parameters:
| Item/Model | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 | |
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
|
Max.Welding Capaciry A3 steel |
MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 |
6+6 |
General Structures:
Detailed Images:
The Upper Electrode:The upper electrode moves vertically up and down in the linear guide, with high precision in repeated positioning, thus ensuring accurate welding points.
The Pressure Component:The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise.
