Cookware Rebar 220V Manual Resistance Welders Long Arm Spot Welder Welding Machine
Product Introduction:

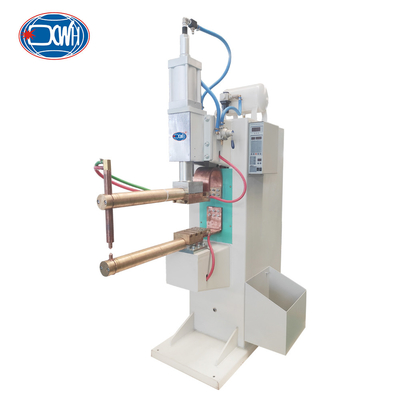

The long arm spot welding machine is our DTN series fixed point projection spot welding machine, customized with a long welding arm for welding special workpiece. The spot welder is a dual purpose welding machine produced by our company, mainly used for welding low-carbon steel, stainless steel, and some non-ferrous metals. It can also achieve welding between plates, between plates and projection welding nuts and bolts.
Features:
(1) . The lowering and rising speed of the pressure head can be adjusted at will, which alleviates the pressure impact on the work and reduces the noise;
(2) The secondary conductor adopts the upper insulation mode, and the insulation performance is stable and reliable;
(3) The main circuit adopts water-cooled high-power silicon controlled rectifier module, with strong, stable and reliable output;
(4) The water circuit elements are all made of copper and stainless steel, and equipped with visual water flow display to display the water flow;
(5) The operation is controlled by foot switch, with high production efficiency and low labor intensity；
Technical Parameters:
| Item/Model | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 | |
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
|
Max.Welding Capaciry A3 steel |
MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 |
6+6 |
General Structures:
Detailed Images:
The Upper Electrode:The upper electrode moves vertically up and down in the linear guide, with high precision in repeated positioning, thus ensuring accurate welding points.
The Pressure Component:The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise.
