| Brand Name: | XWH |
| Model Number: | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| MOQ: | 1 Set |
| Price: | $6000 - $7000.00 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |

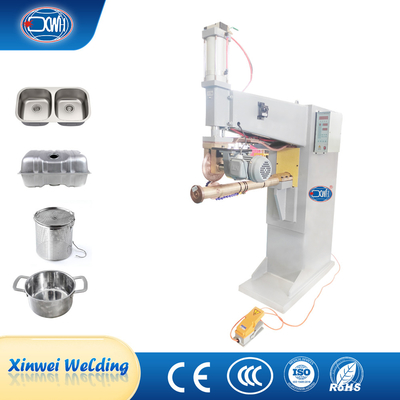

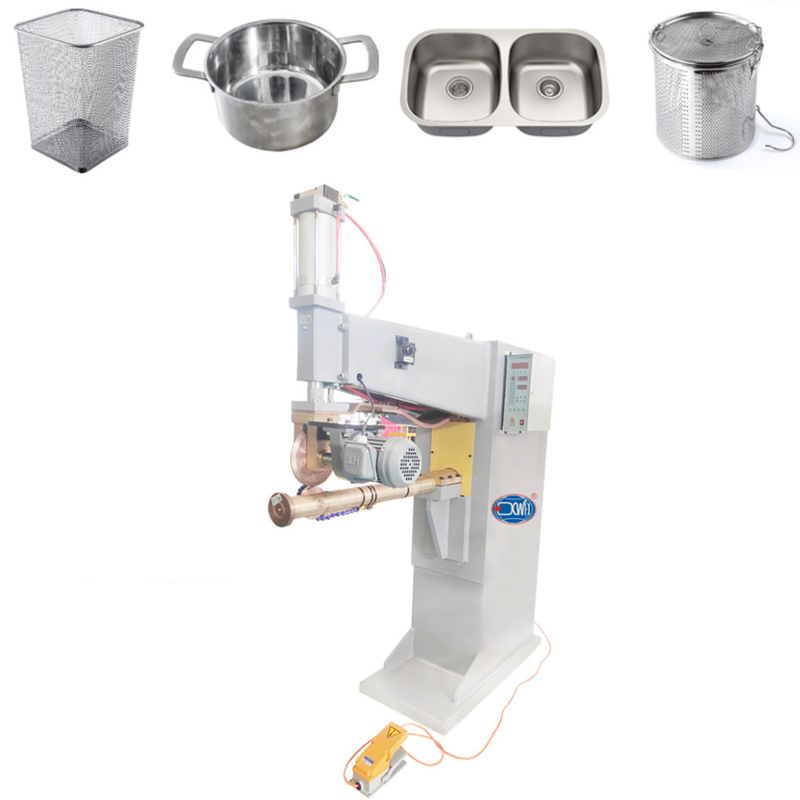

The seam welding machine adopts an advanced digital logic control method, which can accurately control the size of the current and the length of welding time. Suitable for welding between metals such as iron, zinc, nickel, stainless steel, tungsten, and other dissimilar metals. Due to the pulse welding performance of this series of welding machines, the welding effect is good.
|
Model/Item |
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input |
V
|
380
|
380
|
380
|
380 |
380
|
|
Frequency |
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current |
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency |
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force |
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity |
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption |
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Features:
1. The seam welding machine has the characteristics of reasonable equipment structure, simple operation, high automation, wide adjustment range, high accuracy, and stable speed.
2. PLC controls the operation of the entire machine, ensuring accurate and reliable control, as well as simple and convenient operation. AC frequency converter speed regulation achieves infinitely adjustable welding speed, convenient and reliable adjustment, large adjustment range, high precision, stable and reliable operation, and convenient setting of various welding process parameters.
3. High precision and high rigidity structural design ensures long-term accuracy and good stability of the equipment. Adopting precision accessories, it has high performance and stability.
4. Widely used in metal manufacturing and processing industries such as hardware, home appliances, automobiles, motorcycle fuel tanks, basin making, and can making.
General Structures:
BOTH HORIZONTAL SEAM WELDING AND VERTICAL SEAM WELDING
Just changing the direction of the upper electrode wheel and replacing the lower electrode arm, it is easy to switch between the two welding methods.
Detail Image:
Multi Types:
Application:
Please note: the welding machine can be custom-made according to your requirements.
