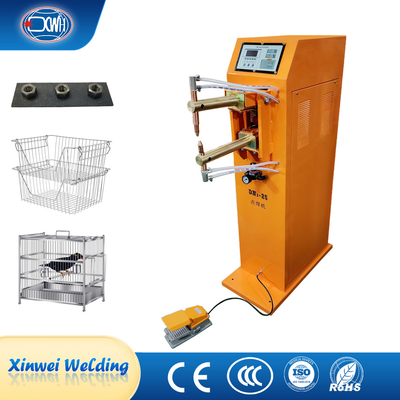

Soldadora De Punto Spot Welder Pneumatic Spot Welders Welding Machine China
Product Introduction:
Pneumatic spot welding machine is a spot welding equipment that relies on a compressed air source to provide welding pressure. Its main feature is that the welding cylinder on the pressurization mechanism generally acts vertically on the spot welding head, providing stable pressure for welding.
Advantages:
1. Microcomputer circuit control with high accuracy.
2. Fine adjustment of welding current 20%-100%.
3. The control system has power factor adaptive function, and the pressure between electrodes is adjustable and constant.
4. Widely used in aviation, construction, machinery, metal products, electrical switches and other industries.
5. Being used for welding of low carbon steel plate, wire, stainless steel plate and other materials.
Technical Parameters:
|
Product Welding Video
|
We provide technical guidance videos, product welding videos, and samples please contact us.
|
|||
|
Overseas on-site technical team
|
South America, Southeast Asia,etc
|
|||
|
One-stop service
|
Spot welding machine / Seam welding machine / Welding robot /Kickless Cables / Controller / Spring Balancer / Welding Electrode Cap Tip
|
|||
|
Models
Item
|
DN3-35
|
DN3-25
|
DN3-16
|
|
|
Rated Power at 50%
|
35KVA
|
25KVA
|
16KVA
|
|
|
Rated Primary Power
|
380V
|
380V
|
380V
|
|
|
Rated Primary Current
|
92A
|
66A
|
42.1A
|
|
|
Rated Duty Cycle
|
10%
|
10%
|
10%
|
|
|
Model of the Controller
|
TCW-32H
|
TCW-32H
|
TCW-32H
|
|
|
Adjustment Rated
|
1
|
4
|
4
|
|
|
Arms Length
|
400mm
|
400mm
|
400mm
|
|
|
280mm
|
280mm
|
280mm
|
||
|
Max. Strength at Electrodes
|
1400N
|
1400N
|
860N
|
|
|
Max. Welding Capacity
|
3+3mm
|
2.5+2.5mm
|
2+2mm
|
|
|
Cooling Way
|
MainTansiomer: Air
Electrode: Water
|
MainTansiomer: Air
Electrode: Water
|
MainTansiomer: Air
Electrode: Water
|
|

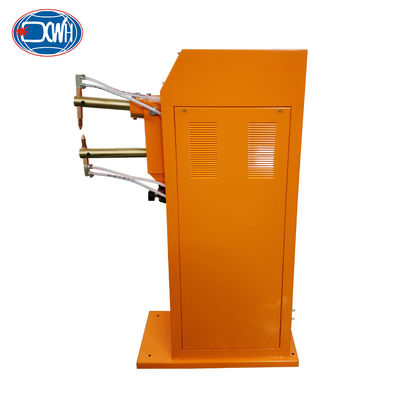

Images:
