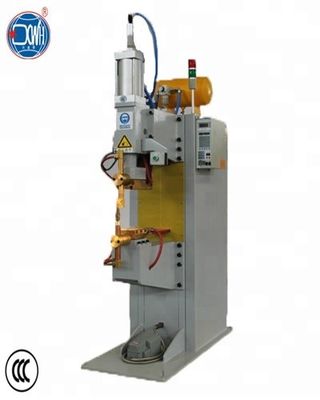

Sheet Metal 380V 125KVA Stationary Spot Welding Machine For Car Cage

Name

Sheet Metal 380V 125KVA Stationary Spot Welding Machine For Car Cage

Brand Name:	XWH
Model Number:	XW
MOQ:	1
Price:	USD 4000-USD 5500
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Product Name:

Sheet Metal Projection Spot Welder For Car Cage

Application:

Metal Welding

Usage:

Welding Of Metal Work

Weight:

100 KG

Rated Duty Cycle:

50%

Rated Capacity:

125KVA

Input Voltage:

220V/380V

Welding Current:

200-13000A

Packaging Details:

Wooden Case

Supply Ability:

500 sets/month

Highlight:

125KVA stationary spot welding machine

,

380V stationary spot welding machine

,

125KVA sheet metal spot welding machine

Product Description

Sheet Metal Projection Spot Welder For Car Cage Stationary Spot Welding Machine

Sheet Metal Projection Spot Welder For Car Cage

MODEL		DN-40	DN-63	D(T)N-80	D(T)N-100	D(T)N-125	D(T)N-160	D(T)N-200
Rated power At 50%	KVA	40	63	80	100	125	160	200
Rated primary power	V	380	380	380	380	380	380	380
Secondary Voltage	V	5.2	6.7	7.9	8.3	8.6	9.1	10.6
Rated frequency	HZ	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Max.Short Circuit Current	KA	14	15	16	18	20	28	34
Max. weld power	KVA	62	86	170	280	300	330	410
Throat	MM	500	500	630	630	630	630	630
Max.Froce at electrodes	N	6000	6000	10000	10000	10000	12000	12000
Working stroke	MM	20	20	30	40	40	50	50
Cooling Water Consumpion 2.5bar	L/min	6	6	8	8	8	10	10
Electrodes tlp	MM	Φ13*45	Φ13*45	Φ16*45	Φ16*45	Φ16*45	Φ20*45	Φ20*45
Arms	MM	Φ50*150	Φ50*150	Φ80*220	Φ80*220	Φ80*220	Φ80*220	Φ80*220
Projection Clamping Plate	MM	125*125	125*125	200*200	200*200	200*200	200*200	200*200
Max.Welding Capaciry A3 steel	MM	2.5+2.5	3+3	4+4	4.5+4.5	5+5	5+5	6+6
Cooling water flow L/min	8	8	8	8	8	8

Factory

Sheet Metal 380V 125KVA Stationary Spot Welding Machine For Car Cage 0

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service.

Our main product: MIG Welding Robot, Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
