| Brand Name: | XWH |
| Model Number: | DN2 |
| MOQ: | 1 |
| Price: | $4,000.00 - $4,500.00 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/month |

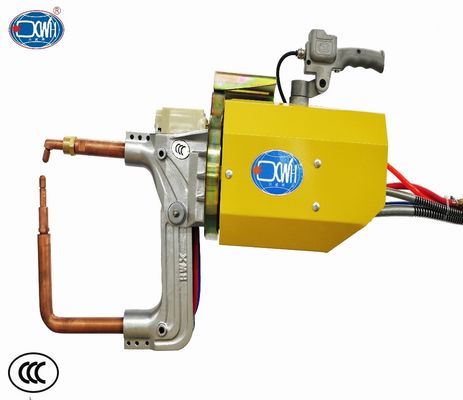

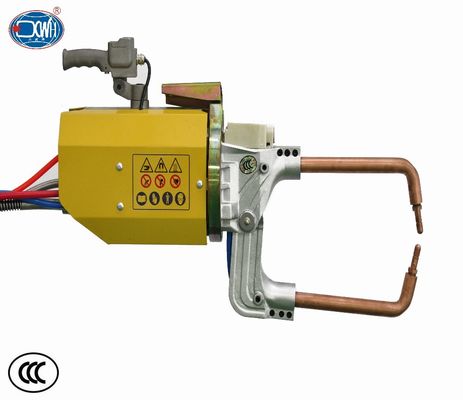

High Quality portable mini spot welding machine
C type X type
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
120-280
|
100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
1. High efficiency resistance welding machine.
2. Easy to install and simple to operate, saves energy.
3. Nimble and 360° rotational use. Stays at any angle any and position.
4. Small, light, high power output. Smallest welder in its power class.
5. Electrode and welding arm are all water cooled so that welding quality can be guaranteed.
6. Gun body is cast with special aluminum, light and ductile
7. The electrode arm is made of copper alloy with good flexional strength, high conductivity.
8. High production rate, sufficient supply of spare parts and components.
