| Place of Origin: | China |
|---|---|
| Brand Name: | Xingweihan |
| Certification: | CE |
| Model Number: | DN(B)-160, DN(B)-200, DN(B)-250 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD15000-USD25000 |
| Packaging Details: | Non-fumigation Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Welding Thickness: | 4-6mm | Cooling System: | Water Cooling |
|---|---|---|---|
| Welding Time: | 0.1-3.0s | Dimension: | Customized |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Welding Mode: | Manual |
| Model: | Table Spot Welding Machine | Weight: | 2000kg |
| High Light: | Resistance Roof Table Spot Welder,Custom Roof Table Spot Welder |
||

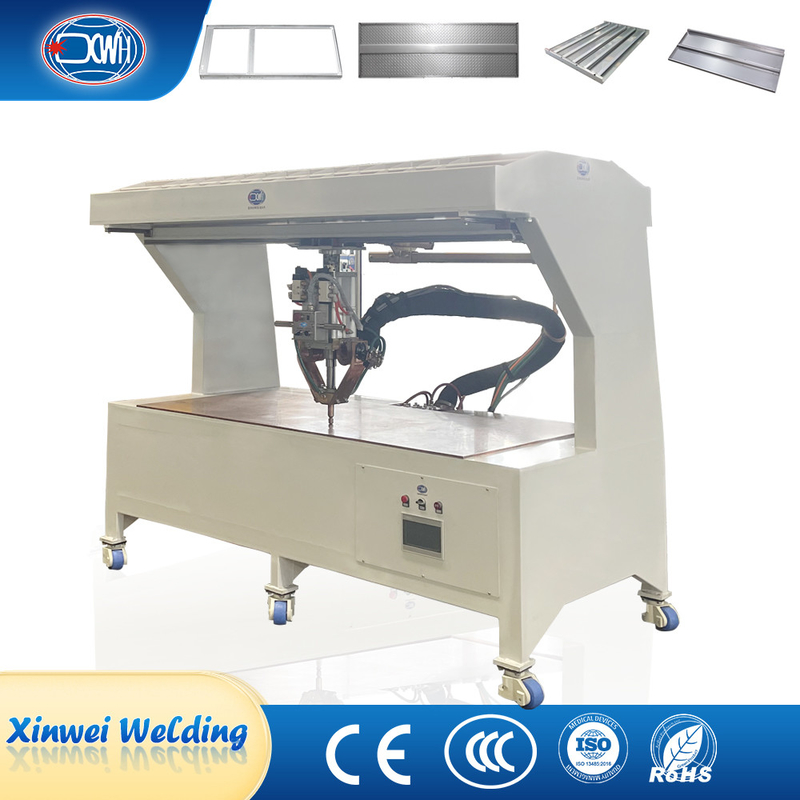

The work principle of table Spot Welding Machine is a platform spot welder:
Installation of workpiece: The workpiece generally does not need to be fixed when placed on the platform. When the workpiece is prone to displacement, it needs to be fixed and clamped to avoid welding point displacement.
Welding: After aligning the positioning point with laser assistance, the automatic switch is pressed, and the program automatically controls the equipment's action to complete product welding. The next point of fixed point welding is manually continued.
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
We offer Roof Type Table Spot Welding Machine with Model Numbers DN(B)-160, DN(B)-200, DN(B)-250. It is manufactured in China and is CE certified. The minimum order quantity for this product is 1 Set and the price ranges from USD15000-USD25000. It is packed in a Non-fumigation Wooden Case and will be delivered within 15 working days. Payments can be made via L/C, D/A, D/P, T/T, Western Union, MoneyGram. We can supply 500 sets/month of this product. The After-sales Service Provided includes Free Spare Parts, Field Installation, Commissioning And Training and Video Technical Support, Online Support And Spare Parts for the After Warranty Service. It can weld 4-6mm thick material. The product is ideal for Manual Desktop Spot Welder For Brass, Spot Welder Table Machine, Desktop Spot Welding Machine.
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
